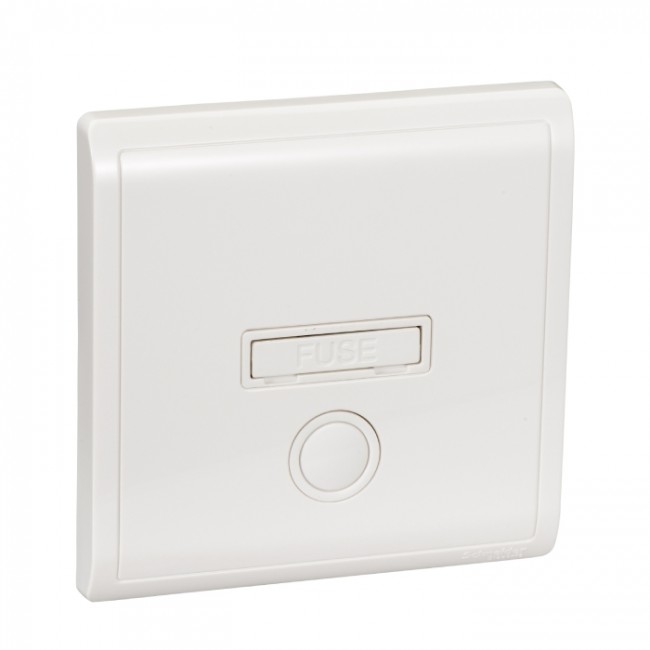

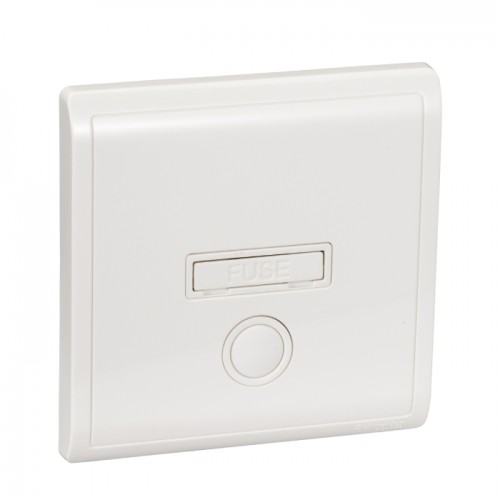

Schneider Electric Pieno Fused connection unit 13A E8230FSG
13A, FUSED CONNECTION UNIT, UNSWITCHED
Model :E8230FSG
SKU :E8230FSG
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno Fused connection unit 13A E8230FSG
Schneider Electric Pieno Fused connection unit 13A E8230FSG
A light switch that pushes the boundaries
Known affectionately as the ‘Slim Rocker’, the Pieno concept is based on a slim profile and features a jumbo dolly. Furthermore,
this sleek range of light switches, which is based on an uncluttered design, incorporates innovative “Sure Click” technology,
offering flutter-free switching for improved durability and reliability.
Specifications
| range | Pieno |
|---|---|
| product or component type | Fused connection unit |
| rated current | 13 A at 250 V AC 50 Hz |
| load type | Resistive |
| protection type | Fuse |
| number of gangs | 1 gang |
| cover frame colour tint | Lavender silver |
| wiring device mounting | Flush Surface |
|---|---|
| material | Polycarbonate: surround Polycarbonate: grid plate |
| clamping connection capacity | 1 x 2.5 mm² for solid cable(s) 2 x 4 mm² for stranded cable(s) |
| connections - terminals | Folded terminal |
| width | 87 mm |
| height | 87 mm |
| depth | 27.8 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | BS 1363 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 89.92 g |
| Package 1 Height | 8.7 cm |
| Package 1 width | 8.7 cm |
| Package 1 Length | 2.8 cm |
