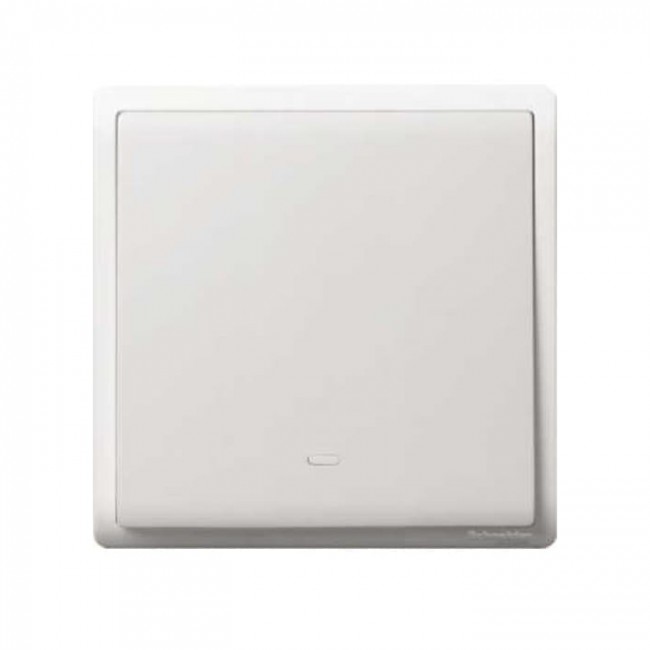

Schneider Electric Pieno one way switch 1 gang 20A 16AX 250V Switch E8231L1F20
20A-16AX 250V 1GANG 1 WAY SWITCH
Model :E8231L1F20
SKU :E8231L1F20
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno one way switch 1 gang 20A 16AX 250V Switch E8231L1F20
Schneider Electric Pieno one way switch 1 gang 20A 16AX 250V Switch E8231L1F20
A light switch that pushes the boundaries
Known affectionately as the ‘Slim Rocker’, the Pieno concept is based on a slim profile and features a jumbo dolly. Furthermore,
this sleek range of light switches, which is based on an uncluttered design, incorporates innovative “Sure Click” technology,
offering flutter-free switching for improved durability and reliability.
Specifications
| range | Pieno |
|---|---|
| product or component type | Switch |
| device application | Control |
| load type | Resistive Fluorescent |
| device mounting | Flush Surface |
|---|---|
| wiring device mounting | Flush Surface |
| switch function | 1-way |
| rated current | 20 A at 250 V AC 50 Hz |
| local signalling | Fluorescent (white) |
| number of gangs | 1 gang |
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections - terminals | Pillar terminals |
| clamping connection capacity | 2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) |
| embedding depth | 23 mm |
| width | 87 mm |
| height | 87 mm |
| depth | 23 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | IEC 60669-1 SS 227-1 BS EN 60669-1 GB 16915.1 MS IEC 60669-1 |
