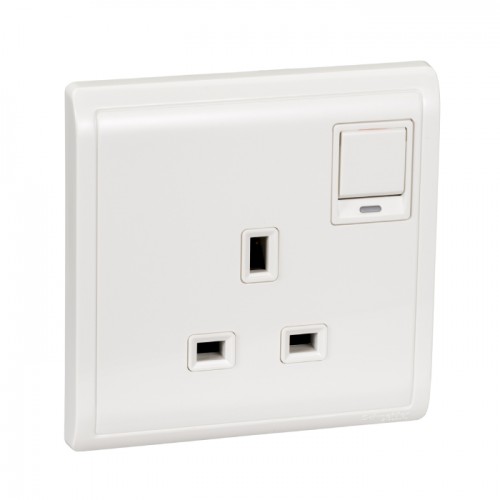

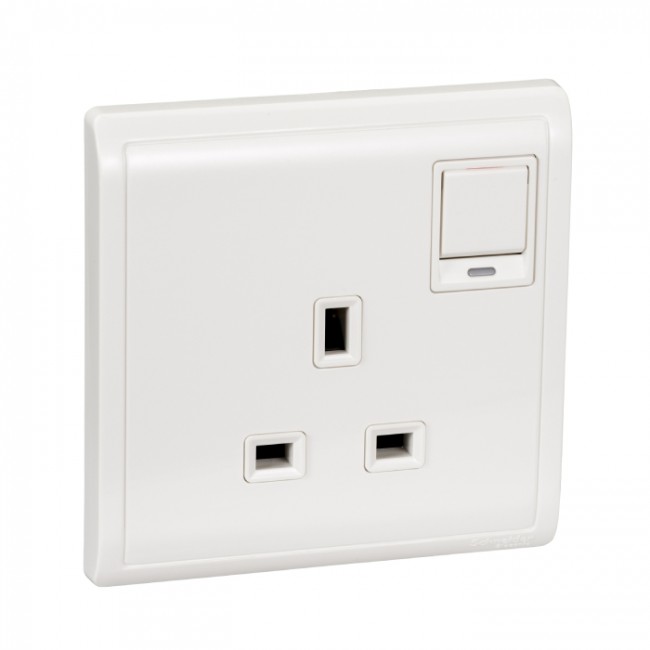

Schneider Electric Pieno Switched Socket with Neon 1 Gang 13A 250V E8215N
13A, 250V 1Gang, SWITCHED SOCKET, NEON
Model :E8215N
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Pieno Switched Socket with Neon 1 Gang 13A 250V E8215N
Schneider Electric Pieno Switched Socket with Neon 1 Gang 13A 250V E8215N
A light switch that pushes the boundaries
Known affectionately as the ‘Slim Rocker’, the Pieno concept is based on a slim profile and features a jumbo dolly. Furthermore,
this sleek range of light switches, which is based on an uncluttered design, incorporates innovative “Sure Click” technology,
offering flutter-free switching for improved durability and reliability.
Specifications
| range | Pieno |
|---|---|
| product or component type | Power socket-outlet |
| device application | Power supply |
| switch function | Switch |
| rated current | 13 A at 250 V AC 50 Hz |
| local signalling | Neon |
| number of gangs | 1 gang |
| load type | No inductive load |
| wiring device mounting | Flush Surface |
|---|---|
| outlet poles configuration | 2P + E china |
| material | Polycarbonate: surround Polycarbonate: grid plate |
| connections - terminals | Switch: pillar terminals Socket: clamp terminal |
| clamping connection capacity | 2 x 2.5 mm² for solid cable(s) |
| width | 87 mm |
| height | 87 mm |
| depth | 8.8 mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | GB 16915.1-2003 GB 2099.1-2008 |
