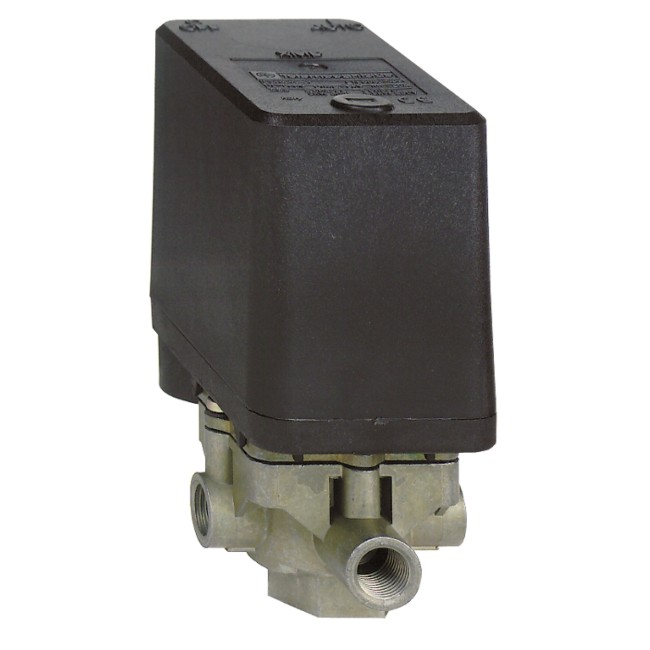

Schneider Electric Telemecanique Pressure sensor XMP 25 bar G 1/4 female 2 NC without control type XMPA25B2131

Telemecanique Pressure sensor XMP 25 bar G 1/4 female 2 NC without control type
Model :XMPA25B2131
SKU :XMPA25B2131
Assured

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 164.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
Out of stock, but you can still place a backorder
Backorder
Bulk Order

  •  Condition: New

Description for Schneider Electric Telemecanique Pressure sensor XMP 25 bar G 1/4 female 2 NC without control type XMPA25B2131


Schneider Electric Telemecanique Pressure sensor XMP 25 bar G 1/4 female  2 NC without control type XMPA25B2131

The XMP switches are electromechanical pressure switches for control circuits. They are used to control the pressure of water and air. It is an IP54 switch with an adjustable differential for regulation between 2 thresholds, without decompression valve. It is a bare case switch, without decompression valve. Ajustable range of switching point: from 3.5bar to 25bar or from 50.75psi to 362.5psi. 2 NC contacts, G 1/4 female fluid connection, 2 entries tapped for n°13 cable gland.


Specifications


Main
Range of productTelemecanique Pressure sensors XM
Pressure sensor typeElectromechanical pressure sensor
Pressure sensor nameXMP
Pressure rating25 bar
Fluid connection typeG 1/4 (female) conforming to ISO 228
Controlled fluidAir (0…70 °C)
Fresh water (0…70 °C)
Sea water (0…70 °C)
Cable entry2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300
Contacts type and composition2 NC snap action
Product specific application-
Pressure switch type of operationRegulation between 2 thresholds
Electrical connectionScrew-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
electrical circuit typePower circuit
Scale typeAdjustable differential
local displayWithout
Sale per indivisible quantity1

Complementary
Adjustable range of switching point on falling pressure0.1…20.5 bar
Adjustment range high setting3.5…25 bar
Possible differential minimum at low setting3.4 bar
Possible differential minimum at high setting4.5 bar
Possible differential maximum at high setting20 bar
Destruction pressure100 bar
Type of decompression valveWithout
Control typeWithout
Terminal block type4 terminals
Pressure actuatorDiaphragm
materials in contact with fluidChromated zinc alloy
Canvas covered nitrile
Enclosure materialPA impregnated with fibreglass
Operating positionAny position
Maximum operating rate10 cyc/mn
Repeat accuracy3.5 %
[Ui] rated insulation voltage500 V conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-1
Maximum resistance across terminals25 MOhm conforming to IEC 60255-7 category 3
25 MOhm conforming to NF C 93-050 method A
Electrical durability1000000 cycles 1.5 kW, operating rate <10 cyc/mn, load factor: 0.4, 400 V AC 3 phases
500000 cycles 3 kW, operating rate <10 cyc/mn, load factor: 0.4, 400 V AC 3 phases
600000 cycles 1.5 kW, operating rate <10 cyc/mn, load factor: 0.4, 230 V AC 3 phases
700000 cycles 2.2 kW, operating rate <10 cyc/mn, load factor: 0.4, 400 V AC 3 phases
Mechanical durability1000000 cycles
SettingNut
Net weight0.65 kg
Terminals description ISO n°1(3-4)NC
(1-2)NC
Depth98 mm
Height126 mm
Width57 mm

Environment
Product certificationsEAC
StandardsCE
EN/IEC 60947-4-1
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…70 °C
Vibration resistance3 gn conforming to IEC 60068-2-6 (f = 10…500 Hz)
Shock resistance50 gn conforming to IEC 60068-2-27
Electrical shock protection classClass I conforming to IEC 60536
IP degree of protectionIP54 conforming to EN/IEC 60529
