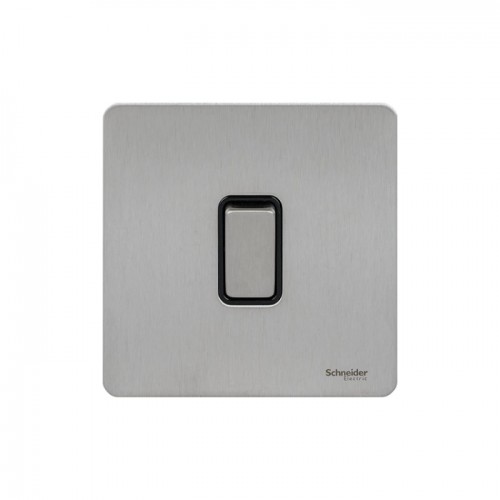

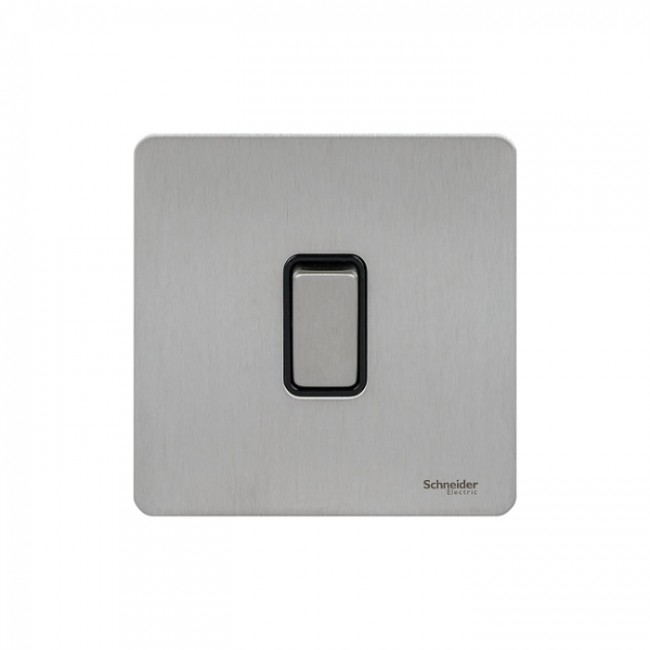

Schneider Electric Ultimate Screwless Flat Plate Switch 1 Gang Stainless Steel with Black Interior GU1412BSS
Ultimate Screwless flat plate - rocker plate switch - 1 gang - stainless steel
Model :GU1412BSS
SKU :

- Condition: New
Description for Schneider Electric Ultimate Screwless Flat Plate Switch 1 Gang Stainless Steel with Black Interior GU1412BSS
Schneider Electric Ultimate Screwless Flat Plate Switch 1 Gang Stainless Steel with Black Interior GU1412BSS
The Ultimate screwless flat plate range from Schneider Electric offers modern, contemporary design and is engineered to make installation easier, quicker and safer. When decorating the screwless front plate can be 'popped' off via the easy-release slot located on the side, and then simply clipped back into place, resulting in a clean professional appearance to your home or office environment; access to live parts is restricted even with the front plate removed ensuring convenience and safety throughout. 2-way functionality allows 2 separate switches to operate the same light fitting, typically at the top and bottom of a stairway or at opposite ends of a corridor. All Schneider Electric plate switches feature curved, matching metal rockers and a 16AX fluorescent rating. Product conforms to BS EN 60669-1. Complete with both M3.5 X 25mm and M3.5 x 30mm fixing screws for maximum flexibility during installation.
Specifications
range of product | Ultimate |
---|---|
range | Ultimate |
aesthetic name | Screwless flat plate |
product or component type | Plate switch |
control type | Rocker |
switch function | 1-pole 2-way |
rated current | 16 AX at 230 V AC |
connections - terminals | Screw terminals |
---|---|
material | Steel |
quantity per set | Set of 1 |
number of gangs | 1 gang |
device mounting | Wall mounted |
height | 88 mm |
width | 88 mm |
depth | 24 mm |
standards | BS EN 60669-1 |
---|---|
IP degree of protection | IP20 |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Weight | 193.2 g |
Package 1 Height | 4 cm |
Package 1 width | 9.5 cm |
Package 1 Length | 9.6 cm |
Unit Type of Package 2 | CAR |
Number of Units in Package 2 | 100 |
Package 2 Weight | 20.01 kg |
Package 2 Height | 21 cm |
Package 2 width | 42.5 cm |
Package 2 Length | 50 cm |
Unit Type of Package 3 | P12 |
Number of Units in Package 3 | 1600 |
Package 3 Weight | 340.16 kg |
Package 3 Height | 100.5 cm |
Package 3 width | 100 cm |
Package 3 Length | 120 cm |
Warranty | 18 months |
---|
