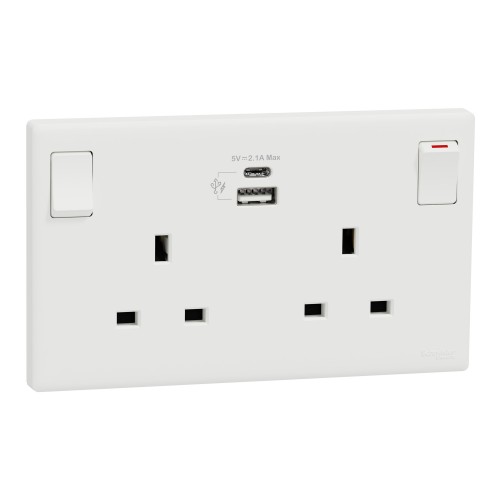

Schneider Electric Vivace 1 Gang Switched Socket with USB A + C ports KBNT25USB_WE
Vivace E 13A Switched Socket with USB A + C – White
Model :KBNT25USB_WE
SKU :KBNT25USB_WE
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Vivace 1 Gang Switched Socket with USB A + C ports KBNT25USB_WE
The rated operating voltage is 250V at 50/60Hz, with a rated current of 13A. It is made of polycarbonate, and the color of the product is white with a glossy surface finish. The product can operate in temperatures from -5°C to +35°C and can be stored in temperatures from -5°C to +60°C. It reaches an IP20 degree of protection.
Specifications
| Range | Vivace E |
|---|---|
| Product or component type | USB charger + switched socket |
| Device presentation | Complete product |
| Socket additional information | Shuttered |
| Type of USB power supply | USB type A + C |
| Device mounting | Surface |
| Outlet poles configuration | 2P + E |
| Colour tint | White |
| Local signalling | Without light indicator |
|---|---|
| Switch function | ON/OFF power-socket outlet |
| Number of power socket outlets | 2 x 2P + E, BS 1363 |
| Surface finish | Glossy |
| surface treatment | Untreated |
| Number of gangs | 2 gangs |
| Power consumption in W | 10.5 W |
| Integrated connection type | 1 USB type A 5 V DC, maximum load current: 2.1 A 1 USB type C 5 V DC, maximum load current: 2.1 A 1 socket-outlet 250 V AC, maximum load current: 13 A |
| Material | PC (polycarbonate) |
| Clamping connection capacity | 1 x 2.5...1 x 4 mm² for rigid or stranded cable(s) |
| Fixing mode | By screws M3.5 x 25 mm |
| fixing center | 120.6 mm |
| Height | 86 mm |
| Width | 146 mm |
| Embedding depth | 20.9 mm |
| Outlet standard deviation | British |
| Main colour tint | White |
| Connections - terminals | Screw terminal |
| Operating altitude | <= 2000 m |
|---|---|
| Ambient air temperature for operation | -5…35 °C |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Standards | BS 1363 |
| IP degree of protection | IP20 |
