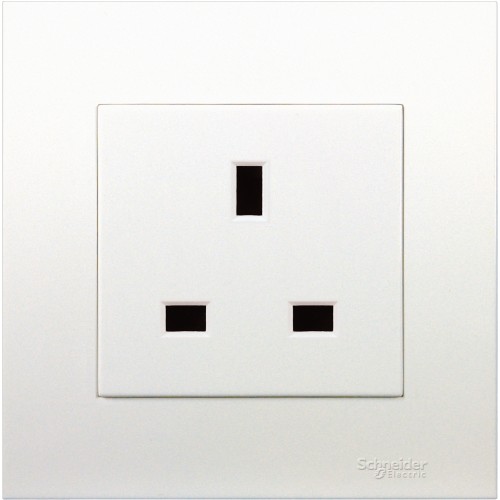

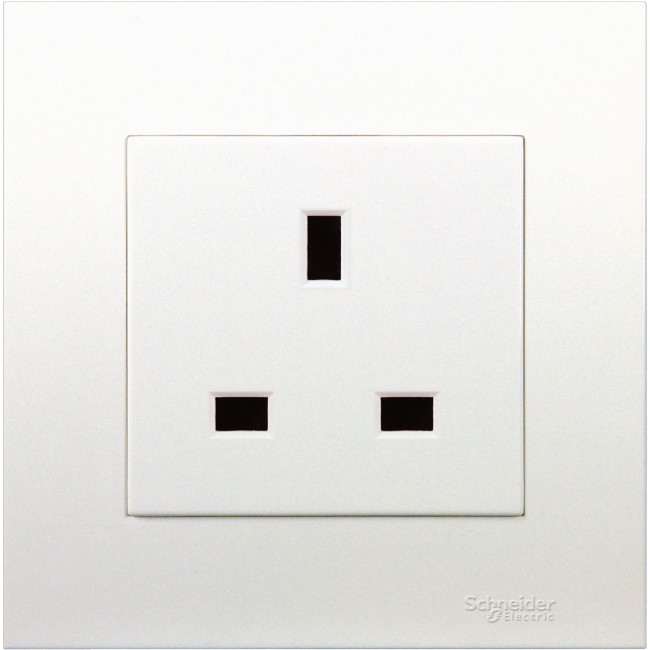

Schneider Electric Vivace 13A 250V 1 Gang Socket KB426
Vivace 13A 250V 1 Gang Socket KB426
Model :KB426
SKU :KB426
7 days retun policy available
Cash on Delivery available
AED 18.64
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric Vivace 13A 250V 1 Gang Socket KB426
Schneider Electric Vivace 13A 250V 1 Gang Socket KB426
Specifications
| Product or component type | Socket-outlet |
|---|---|
| Device short name | KB426 |
| device presentation | Complete mechanism |
| Colour tint | White |
| Outlet poles configuration | 2P + E |
|---|---|
| Number of gangs | 1 gang |
| Material | Polycarbonate: grid plate Polycarbonate: surround Nylon: base |
| Projecting depth | 8 mm |
| device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 35 mm |
| Rated current | 13 A at 250 V AC, no inductive load |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| terminal identifier | L N E |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 4 mm² 2.5 mm² |
| Width | 86 mm |
| Height | 86 mm |
| Standards | BS 1363-2 MS 589 SS 145 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
