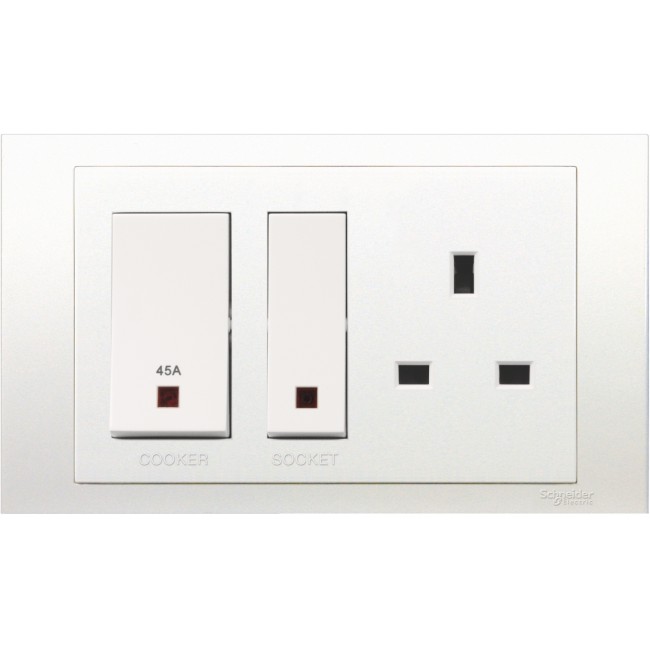

Schneider Electric Vivace Cooker control unit 45A 250V white KBT15D45N
Vivace Cooker control unit 45A 250V white
Model :KBT15D45N
SKU :KBT15D45N
7 days retun policy available
Cash on Delivery available
only 5 item(s) remaining
AED 83.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider Electric Vivace Cooker control unit 45A 250V white KBT15D45N
Schneider Electric Vivace Cooker control unit 45A 250V white KBT15D45N
Specifications
| Range | Vivace |
|---|---|
| Product or component type | Cooker control unit |
| Device short name | KBT15 |
| device presentation | Complete product |
| Switch application | Cooker and socket |
| Pilot light | Red neon indicator |
|---|---|
| Outlet poles configuration | 2P + E |
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| Projecting depth | 8 mm |
| device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 120.6 mm |
| Embedding depth | 47 mm |
| Rated current | 45 A at 250 V AC, resistive 45 A at 250 V AC, inductive |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| terminal identifier | Earth L N |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | <= 16 mm² |
| Width | 146 mm |
| Height | 86 mm |
| Standards | BS 4177 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| IP degree of protection | IP20 |
