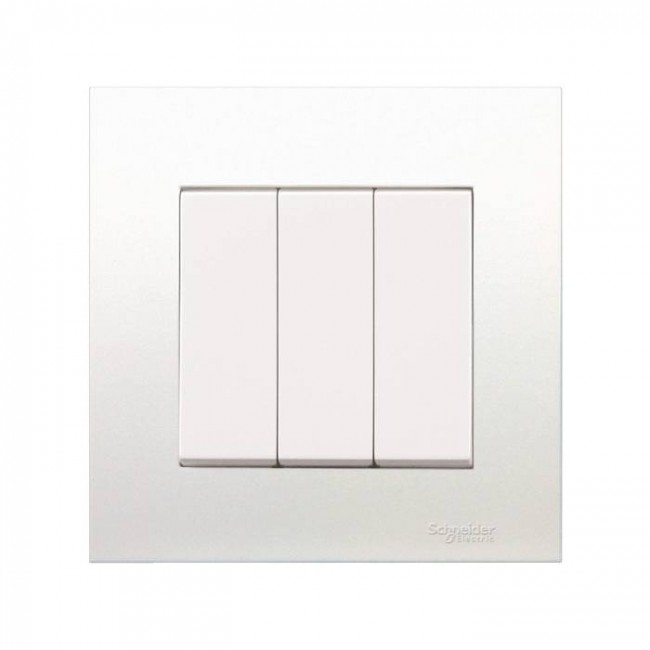

Schneider Electric Vivace one way Plate Switch 3 Gang White 16Ax Switch KB33R_1

Vivace, one way Plate Switch, 3 Gang, KB33R_1
Model :KB33R_1
SKU :KB33R_1
Assured

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 12.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Vivace one way Plate Switch 3 Gang White 16Ax Switch KB33R_1


Schneider Electric Vivace one way Plate Switch 3 Gang White 16Ax Switch KB33R_1


Enjoy unrivalled performance and reliability with the Schneider Electric Vivace. A clean, geometrically balanced design is ideally suited for new construction and refurbishment projects. Thin: 8mm slim at the thickest point, it offers excellent space-saving potential and reduces sub-floor thickness. All sockets are inserted with shutter doors for a longer lifecycle.

Specifications


Main
rangeVivace
product or component typeSwitch
device short nameKB33
device presentationComplete mechanism
Complementary
switch function1-way
actuatorRocker
number of gangs3 gangs
colour tintWhite
materialPolycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
projecting depth8 mm
device mountingFlush
mounting supportWall mounted
fixing modeBy screw M3.5
fixing center60.3 mm
embedding depth35 mm
rated current16 AX at 250 V AC, inductive
16 AX at 250 V AC, fluorescent
[Ue] rated operational voltage250 V AC
network frequency50 Hz
contacts materialBrass and phosphor bronze
connections - terminalsPillar terminal
terminal identifierCOM
L2
L1
tightening torque0.4 N.m
clamping connection capacity2.5 mm²
width87 mm
height87 mm
Environment
standardsIEC 60669-1
SS 227
MS IEC 60669-1
ambient air temperature for operation-5…40 °C
relative humidity0…95 %
environmental characteristicIndoor use
Packing Units
Package 1 Weight88.750 g
Package 1 Height1.000 mm
Package 1 width1.000 mm
Package 1 Length1.000 mm
Offer Sustainability
Sustainable offer statusGreen Premium product
REACh RegulationREACh Declaration
EU RoHS Directive
Compliant
EU RoHS Declaration
Mercury freeYes
RoHS exemption information
China RoHS RegulationChina RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental DisclosureProduct Environmental Profile
Contractual warranty
Warranty18 months
