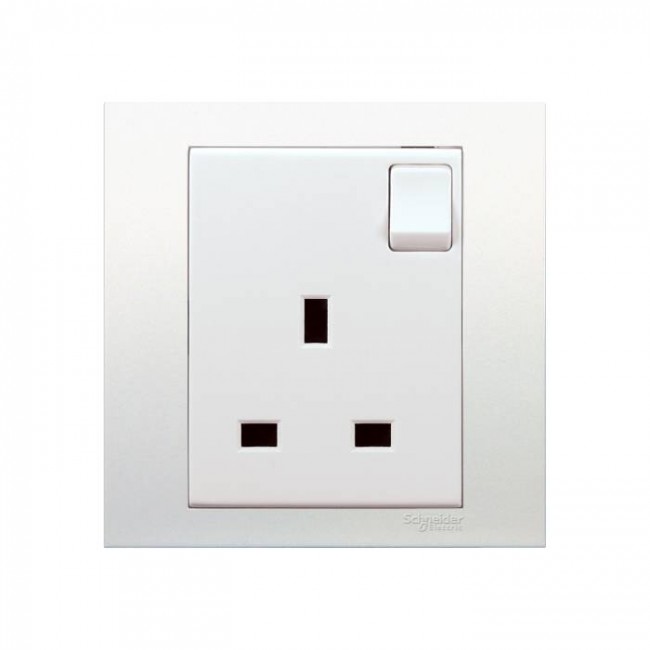

Schneider Electric Vivace Switched Socket 1 Gang 13A 250V Socket KB15
Vivace, Switched Socket, 1 Gang 13A 250V, KB15
Model :KB15
SKU :KB15
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Vivace Switched Socket 1 Gang 13A 250V Socket KB15
Schneider Electric Vivace Switched Socket 1 Gang 13A 250V Socket KB15
Enjoy unrivalled performance and reliability with the Schneider Electric Vivace. A clean, geometrically balanced design is ideally suited for new construction and refurbishment projects. Thin: 8mm slim at the thickest point, it offers excellent space-saving potential and reduces sub-floor thickness. All sockets are inserted with shutter doors for a longer lifecycle.
Specifications
| range | Vivace | |
|---|---|---|
| product or component type | Socket-outlet with switch | |
| device short name | KB15 | |
| device presentation | Complete mechanism |
| outlet poles configuration | 2P + E | |
|---|---|---|
| number of gangs | 1 gang | |
| Colour tint | White | |
| material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base | |
| projecting depth | 8 mm | |
| device mounting | Flush | |
| mounting support | Wall mounted | |
| fixing mode | By screw M3.5 | |
| fixing center | 60.3 mm | |
| embedding depth | 35 mm | |
| rated current | 13 A at 250 V AC, resistive | |
| network frequency | 50 Hz | |
| contacts material | Brass and phosphor bronze | |
| connections - terminals | Pillar terminal | |
| terminal identifier | N Earth L | |
| tightening torque | 0.4 N.m | |
| clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² | |
| width | 87 mm | |
| height | 87 mm |
| standards | MS 589 SS 145 BS 1362-2 | |
|---|---|---|
| ambient air temperature for operation | -5…40 °C | |
| relative humidity | 0…95 % | |
| operating altitude | <= 2000 m | |
| environmental characteristic | Indoor use |
| Package 1 Weight | 91.250 g | |
|---|---|---|
| Package 1 Height | 1.000 cm | |
| Package 1 width | 1.000 cm | |
| Package 1 Length | 1.000 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | Product Environmental Profile |
| Warranty | 18 months |
|---|
