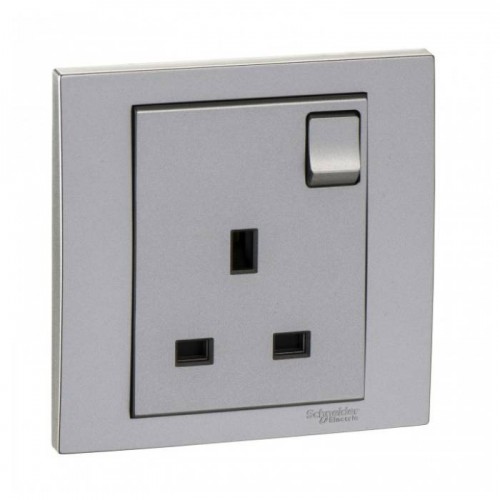

Schneider Electric Vivace Switched Socket 13A 1 Gang Socket KB15_AS
Vivace, Switched Socket, 13A 1 Gang, KB15_AS
Model :KB15_AS
SKU :KB15_AS
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Vivace Switched Socket 13A 1 Gang Socket KB15_AS
Schneider Electric Vivace Switched Socket 13A 1 Gang Socket KB15_AS
Enjoy unrivalled performance and reliability with the Schneider Electric Vivace Switched Fuse mechanism. A clean, geometrically balanced design is ideally suited for new construction and refurbishment projects. Thin: 8mm slim at the thickest point, it offers excellent space-saving potential and reduces sub-floor thickness. All sockets are inserted with shutter doors for a longer lifecycle.
Specifications
| range | Vivace | |
|---|---|---|
| product or component type | Socket-outlet with switch | |
| device short name | KB15 | |
| device application | Power supply Control | |
| device presentation | Complete mechanism |
| outlet poles configuration | 2P + E | |
|---|---|---|
| number of gangs | 1 gang | |
| Colour tint | Aluminium silver | |
| material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base | |
| projecting depth | 8 mm | |
| device mounting | Flush | |
| mounting support | Wall mounted | |
| fixing mode | By screw M3.5 | |
| fixing center | 60.3 mm | |
| embedding depth | 35 mm | |
| rated current | 13 A at 250 V AC, resistive 13 A at 250 V AC, inductive | |
| network frequency | 50 Hz | |
| contacts material | Brass and phosphor bronze | |
| connections - terminals | Pillar terminal | |
| terminal identifier | L Earth N | |
| tightening torque | 0.4 N.m | |
| clamping connection capacity | <= 1.5 mm² | |
| width | 86 mm | |
| height | 86 mm |
| standards | BS 546 | |
|---|---|---|
| ambient air temperature for operation | -5…40 °C | |
| relative humidity | 0…95 % | |
| environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 72 g | |
| Package 1 Height | 3.1 cm | |
| Package 1 width | 8.6 cm | |
| Package 1 Length | 8.6 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | Product Environmental Profile |
