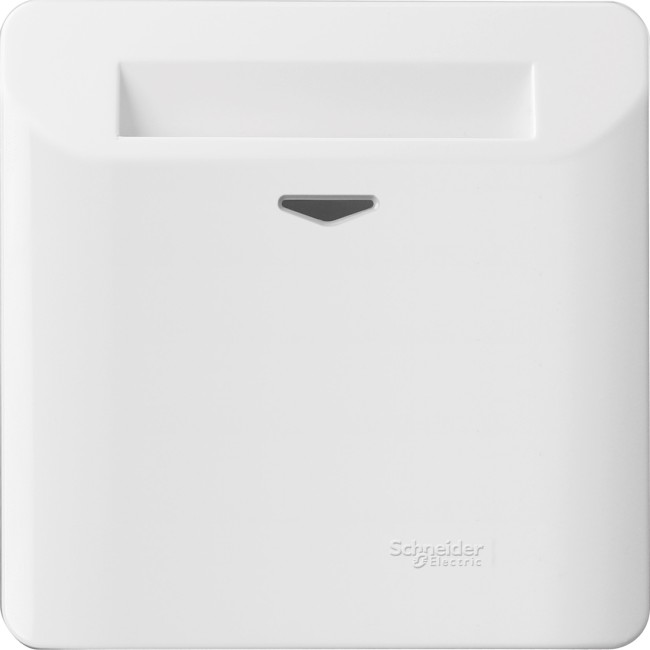

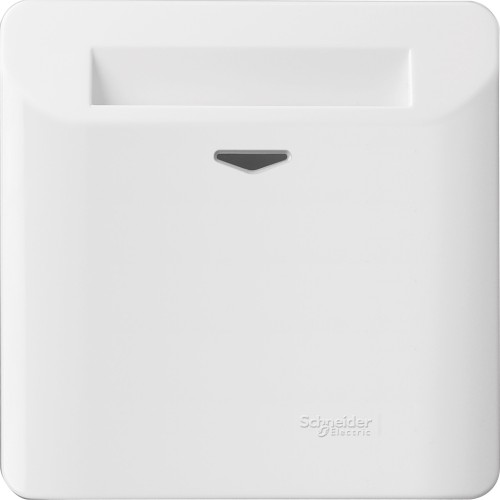

Schneider Electronic key card switch timedelay WhitePlate+WhiteSurround E8431EKT-WW
Model :E8431EKT-WW
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Electronic key card switch timedelay WhitePlate+WhiteSurround E8431EKT-WW
Specifications
| Range | ZENcelo |
|---|---|
| Product or component type | Key card switch |
| Device application | Hotel |
| Colour tint | White |
| Cover frame colour tint | White |
| Device mounting | Flush Surface |
|---|---|
| Material | Polycarbonate: plastic part |
| Clamping connection capacity | 3 x 4 mm² for solid cable(s) 3 x 4 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) |
| Load type | Resistive |
| Connections - terminals | Brass terminal |
| Embedding depth | 29.1 mm |
| Width | 87.2 mm |
| Height | 87.2 mm |
| Depth | 41.1 mm |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | 0...60 °C |
| Standards | IEC 60669-2-1 GB 16915.2 |
