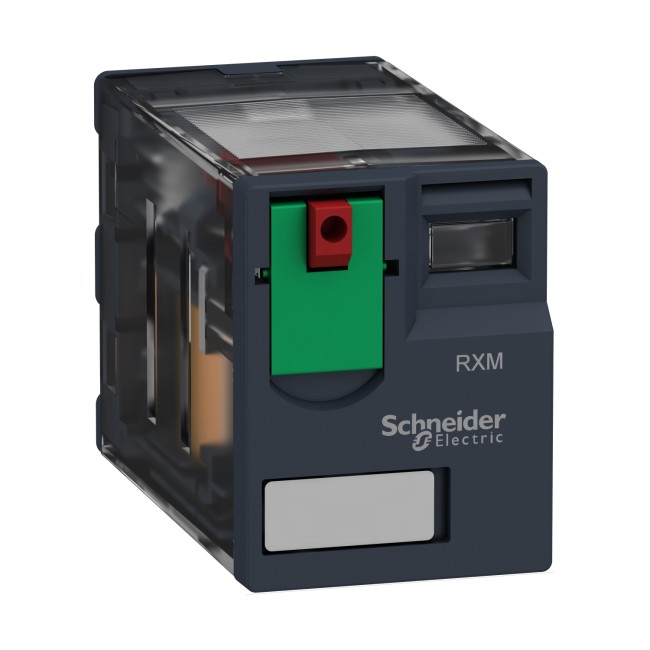

Schneider Harmony, Miniature plug-in relay, 6 A, 4 CO, with lockable test button, 120 V AC RXM4AB1F7

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE [...]
Model :RXM4AB1F7
SKU :
Assured

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available
AED 14.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Harmony, Miniature plug-in relay, 6 A, 4 CO, with lockable test button, 120 V AC RXM4AB1F7


RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Specifications


Main
Range of productHarmony Electromechanical Relays
Series nameMiniature
Product or component typePlug-in relay
Device short nameRXM
Contacts type and composition4 C/O
[Uc] control circuit voltage120 V AC 50/60 Hz
Status LEDWithout
Control typeLockable test button
Utilisation coefficient20 %
Complementary
Shape of pinFlat
[Ui] rated insulation voltage250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage2.5 kV during 1.2/50 µs
Contacts materialAgNi
[Ie] rated operational current3 A at 28 V (DC) NC conforming to IEC
3 A at 250 V (AC) NC conforming to IEC
6 A at 28 V (DC) NO conforming to IEC
6 A at 250 V (AC) NO conforming to IEC
6 A at 277 V (AC) conforming to UL
8 A at 30 V (DC) conforming to UL
Continuous output current5 A
Maximum switching voltage250 V conforming to IEC
resistive rated load6 A at 250 V AC
6 A at 28 V DC
Maximum switching capacity1500 VA/168 W
Minimum switching capacity170 mW at 10 mA, 17 V
Operating rate<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Mechanical durability10000000 cycles
Electrical durability100000 cycles for resistive load
average coil consumption in VA1.2 at 60 Hz
Average consumption1.2 VA at 60 Hz
Drop-out voltage threshold>= 0.15 Uc
operate time20 ms
release time20 ms
average coil resistance4430 Ohm at 20 °C +/- 15 %
Rated operational voltage limits96...132 V AC
Safety reliability dataB10d = 100000
Protection categoryRT I
Test levelsLevel A group mounting
Operating positionAny position
CAD overall height79 mm
CAD overall depth78.45 mm
Net weight0.037 kg
Device presentationComplete product
Environment
Dielectric strength1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact with basic insulation
2000 V AC between poles with basic insulation
Product certificationsGOST
CE
Lloyd's
UL
CSA
StandardsUL 508
EN/IEC 61810-1
CSA C22.2 No 14
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-40…55 °C
Vibration resistance3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
IP degree of protectionIP40 conforming to EN/IEC 60529
Shock resistance10 gn for in operation
30 gn for not operating
Pollution degree2
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height2.100 cm
Package 1 Width2.800 cm
Package 1 Length4.800 cm
Package 1 Weight33.200 g
Unit Type of Package 2BB1
Number of Units in Package 210
Package 2 Height3.300 cm
Package 2 Width10.300 cm
Package 2 Length12.600 cm
Package 2 Weight364.000 g
Unit Type of Package 3S02
Number of Units in Package 3240
Package 3 Height15.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight9.136 kg
Contractual warranty
Warranty18 months
