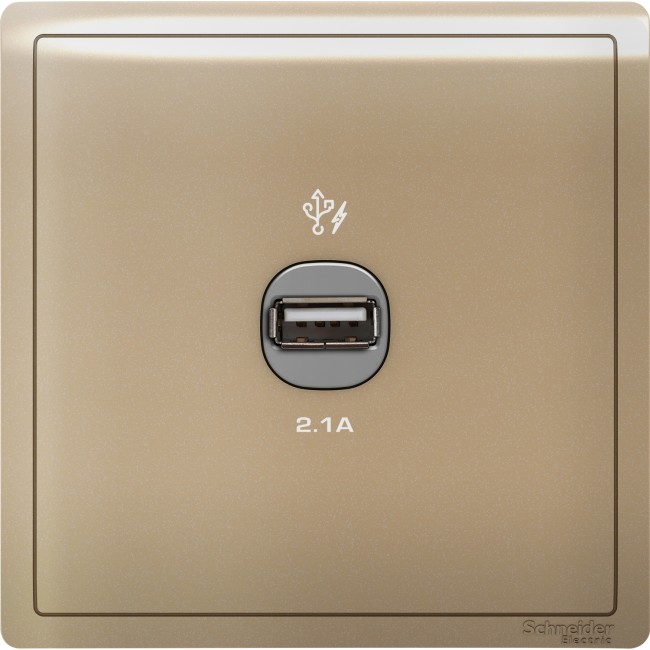

Schneider Pieno - 1 x 2.1A USB Charger - Wine Gold E8231USB_WG
Model :E8231USB_WG
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Pieno - 1 x 2.1A USB Charger - Wine Gold E8231USB_WG
Specifications
| Range | Pieno |
|---|---|
| Product or component type | USB charger |
| Fixing mode | Screw |
| Device mounting | Flush |
|---|---|
| Device presentation | Mechanism |
| Colour tint | Wine gold |
| Surface finish | Glossy |
| Surface treatment | Untreated |
| Number of modules | 1 module 46 x 36.7 x 21.7 mm |
| Condition of use | Room temperature |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 10…90 % |
| [Ue] rated operational voltage | 100/240 V AC 50/60 Hz |
| Integrated connection type | 1 USB port 5 V DC, maximum load current: 2.1 A |
| Material | Silicone rubber: cover PC (polycarbonate): grid plate PC (polycarbonate): housing |
| Shape of screw head | Cross |
| Number of terminals | 2 screw terminals |
| Clamping connection capacity | 2.5 mm² for stranded cable(s) 2.5 mm² for flexible cable(s) 2.5 mm² for rigid cable(s) 1.5 mm² for stranded cable(s) 1.5 mm² for flexible cable(s) 1.5 mm² for rigid cable(s) |
| wire stripping length | 6 mm |
| Product compatibility | Power bank Samsung XiaoMi HW Major smart phone and tablet HTC Apple |
| Standards | CNS 14336 GB 4943.1 CNS 13438 IEC 60950-1 MS IEC 60950-1 |
| Height | 87 mm |
| Width | 87 mm |
| Depth | 39 mm |
| Embedding depth | 27.3 mm |
| Net weight | 0.0767 kg |
| Product certifications | CCC IEC |
|---|---|
| IP degree of protection | IP20 |
| Environmental characteristic | Alcohol Liquid soap |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.8 cm |
| Package 1 Width | 8.8 cm |
| Package 1 Length | 8.8 cm |
| Package 1 Weight | 83 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 664 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 21 cm |
| Package 3 Width | 31 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 6680 g |
