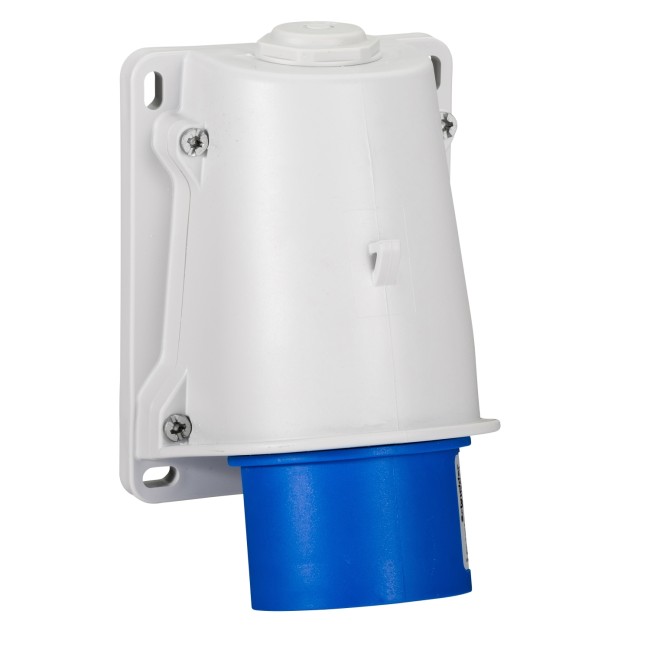

Schneider PratiKa plug - angled - 16A - 3P + N + E - 200...250 V AC - IP44 - wall-mounted PKX16W425
This Pratika industrial plug with fast connection connection is angled wall mounted. It has 3P+N+E poles, rated current is 16[...]
Model :PKX16W425
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider PratiKa plug - angled - 16A - 3P + N + E - 200...250 V AC - IP44 - wall-mounted PKX16W425
This Pratika industrial plug with fast connection connection is angled wall mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 90mm x (H) 142mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 2.5mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.
Specifications
| Range | PratiKa |
|---|---|
| Product or component type | Plug |
| device short name | PratiKa plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 9 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass Screws: stainless steel |
| Connections - terminals | Fast connection |
| Cable cross section | 1…2.5 mm² |
| Cable outer diameter | 21.5 mm |
| Thread type | M25 |
| Product weight | 0.26 kg |
| Base dimension | 120 x 90 mm |
| Height | 142 mm |
| Width | 90 mm |
| Depth | 86 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-11 |
| Pollution degree | 3 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.6 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 14.2 cm |
| Package 1 Weight | 504.0 g |
| Warranty | 18 months |
|---|
