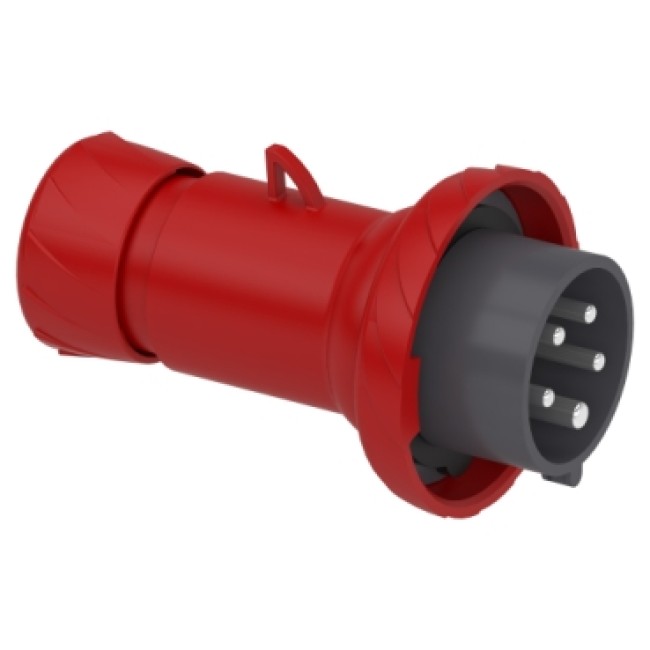

Schneider PratiKa Wander Plug, Straight, 16A, 3P N E, 380-415V AC, IP67 PKE16M735
Model :PKE16M735
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider PratiKa Wander Plug, Straight, 16A, 3P N E, 380-415V AC, IP67 PKE16M735
The Schneider PratiKa Wander Plug (PKE16M735) is a durable and reliable straight plug designed for industrial use. Rated at 16A with a 3P+N+E configuration, it supports 380-415V AC power connections. This plug features an IP67 rating, providing excellent resistance to dust and water, making it ideal for harsh environments. Its robust design ensures long-term reliability, and the easy-grip construction makes handling and installation straightforward. Perfect for industrial applications requiring secure and efficient electrical connections.
Specifications
Product Specifications
| Main | |
|---|---|
| Range | Mureva |
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Complementary | |
| Plug, socket, control station shape | Straight |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| Cable entry | Cable gland Fair lead |
| Thread type | Pg 21 |
| Net weight | 0.21 kg |
| Height | 142 mm |
| Width | 89 mm |
| Depth | 89 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Environment | |
| Standards | IEC 60309-2 IEC 60309-1 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C (86400 s) -25…40 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.7 cm |
| Package 1 Width | 8.8 cm |
| Package 1 Length | 15.6 cm |
| Package 1 Weight | 222.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.8 cm |
| Package 2 Width | 26.6 cm |
| Package 2 Length | 27.0 cm |
| Package 2 Weight | 2.398 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 5.283 kg |
| Contractual Warranty | |
| Warranty | 18 months |
