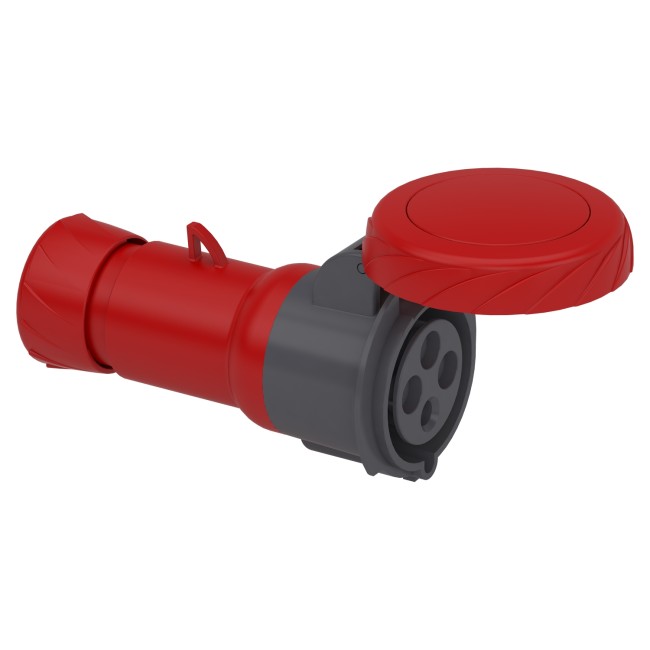

Schneider PratiKa wander socket - straight - 32 A - 3P + E - 380...415 V AC - IP67 PKF32M734
This Pratika industrial wander socket with captive screws connection is straight. It has 3P+E poles, rated current is 32A and [...]
Model :PKF32M734
SKU :PKF32M734
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider PratiKa wander socket - straight - 32 A - 3P + E - 380...415 V AC - IP67 PKF32M734
This Pratika industrial wander socket with captive screws connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 99mm x (H) 99mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| device short name | Mureva screw |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland |
| Thread type | Pg 21 |
| Product weight | 0.3 kg |
| Height | 99 mm |
| Width | 99 mm |
| Depth | 164 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 9 cm |
| Package 1 Length | 17.3 cm |
| Package 1 Weight | 282 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 17 cm |
| Package 2 Width | 26 cm |
| Package 2 Length | 27 cm |
| Package 2 Weight | 1.87 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 4.24 kg |
| Warranty | 18 months |
|---|
