Schneider Switched socket with USB charger, AvatarOn, 10A 250V, 1gang, International soc, Dark grey E8315TSU_DG
Model :E8315TSU_DG
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 170.86 AED 227.81
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New

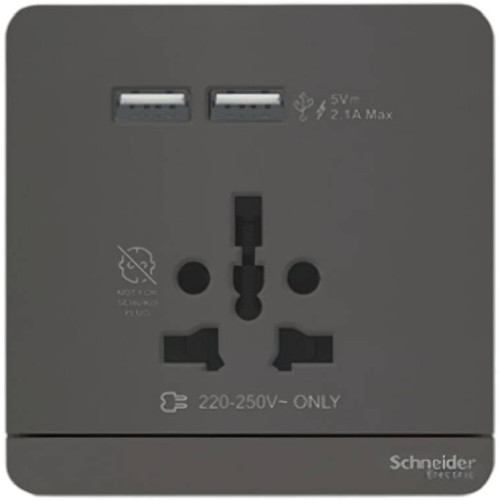

Description for Schneider Switched socket with USB charger, AvatarOn, 10A 250V, 1gang, International soc, Dark grey E8315TSU_DG
Specifications
| Range | AvatarOn |
|---|---|
| Product or component type | Switched socket with USB charger |
| Device presentation | Complete mechanism |
| Socket additional information | Shuttered |
| Load type | 240 V AC |
| Device mounting | Flush 28.5 mm |
|---|---|
| Switch function | ON/OFF power-socket outlet |
| Number of power socket outlets | 1 x 3P with shutters, universal |
| Rated current | Power circuit: 10 A 250 V, AC, 50 Hz |
| Surface finish | Glossy |
| Surface treatment | Painted |
| Number of gangs | 1 gang |
| Connector type | USB type A |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Power consumption in W | 10.5 W |
| Integrated connection type | 2 USB port 5 V DC, maximum load current: 2.1 A |
| Material | PC (polycarbonate) 2407 Bayer: grid plate |
| Protection type | USB port: over temperature protection with PWM IC circuit |
| Shape of screw head | Cross |
| Screwdriver shape | Philips |
| Electrical connection | 3 screw terminal |
| Clamping connection capacity | 1 x 4 mm² for solid cable(s) |
| Wire stripping length | 10…12 mm |
| Mounting support | Mounting box conforming to BS 4662 |
| Fixing mode | By screws M3.5 x 25 mm |
| Fixing center | 120.6 mm |
| Height | 147 mm |
| Width | 87 mm |
| Depth | 32 mm |
| Embedding depth | 24 mm |
| Product weight | 0.2 kg |
| Operating altitude | <= 2000 m |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -5…60 °C |
| Relative humidity | 0…95 % |
| Standards | BS 1363-2 |
| Product certifications | IEC |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.06 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 120 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.06 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 21.5 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.81 kg |
