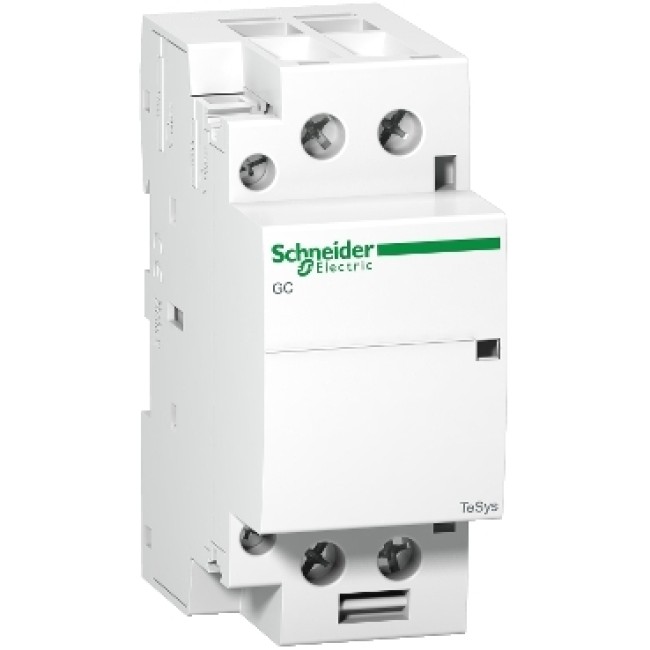

Schneider TeSys GC - modular contactor - 40 A - 2 NO - coil 220...240 V AC GC4020M5
TeSys GC modular contactor, 2 poles (2NO), 40A/250V AC-7a (heating) and 15A/250V AC-7b (motor control), for household applications. [...]
Model :GC4020M5
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
AED 117.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries
- Condition: New
Description for Schneider TeSys GC - modular contactor - 40 A - 2 NO - coil 220...240 V AC GC4020M5
TeSys GC modular contactor, 2 poles (2NO), 40A/250V AC-7a (heating) and 15A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Specifications
| Range | TeSys |
|---|---|
| Product name | TeSys GC |
| product or component type | Modular contactor |
| device short name | GC40 |
| contactor application | Lighting Heating Motor control |
| Utilisation category | AC-7B AC-7A |
|---|---|
| Poles description | 2P |
| power pole contact composition | 2 NO |
| [Ue] rated operational voltage | <= 250 V AC |
| [Ie] rated operational current | 40 A AC-7A 15 A AC-7B |
| Operating position | 30°/vertical |
| Control circuit type | AC at 50 Hz |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ith] conventional free air thermal current | 40 A (at 50 °C) for power circuit |
| Irms rated making capacity | 120 A at 400 V AC for power circuit conforming to IEC 61095 |
| Rated breaking capacity | 120 A at 400 V for power circuit conforming to IEC 61095 |
| [Icw] rated short-time withstand current | 320 A 40 °C - 10 s for power circuit 100 A 40 °C - 30 s for power circuit |
| Associated fuse rating | 40 A gL at <= 440 V for power circuit |
| Average impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | 500 V conforming to IEC 61095 500 V conforming to VDE 0110 |
| Electrical durability | AC-7A: 100000 cycles AC-7B: 100000 cycles |
| Power dissipation per pole | 3.2 W |
| Control type | Remote control |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Standards | IEC 61095 IEC 60947-5 |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 25 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 16 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 16 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 4 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 25 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 6 mm²solid without cable end |
| Tightening torque | Control circuit: 0.8 N.m - on screw clamp terminals Power circuit: 2 N.m - on screw clamp terminals |
| Operating time | 10...25 ms opening 10...30 ms closing |
| Mechanical durability | 1000000 cycles |
| Maximum operating rate | 300 cyc/h 50 °C |
| Control circuit voltage limits | Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C) Operational: 0.85...1.1 Uc at 50 Hz (at <50 °C) |
| Inrush power in VA | 34 VA 50 Hz (at 20 °C) |
| Hold-in power consumption in VA | 4.6 VA 50 Hz (at 20 °C) |
| Heat dissipation | 1.6 W at 50/60 Hz |
| IP degree of protection | IP40 conforming to VDE 0106 (in enclosure) IP20 conforming to VDE 0106 |
|---|---|
| Protective treatment | TC |
| Ambient air temperature for operation | -5…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | <= 3000 m |
| Mechanical robustness | Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 3 Gn, 5...300 Hz |
| Total number of 18 mm modules | 2 |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 62.5 mm |
| Net weight | 0.23 kg |
| Quantity per set | Set of 6 |
| Colour | White |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 9 cm |
| Package 1 Weight | 226 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 8 cm |
| Package 2 Width | 9.5 cm |
| Package 2 Length | 23 cm |
| Package 2 Weight | 1.427 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 11.911 kg |
| Warranty | 18 months |
|---|
