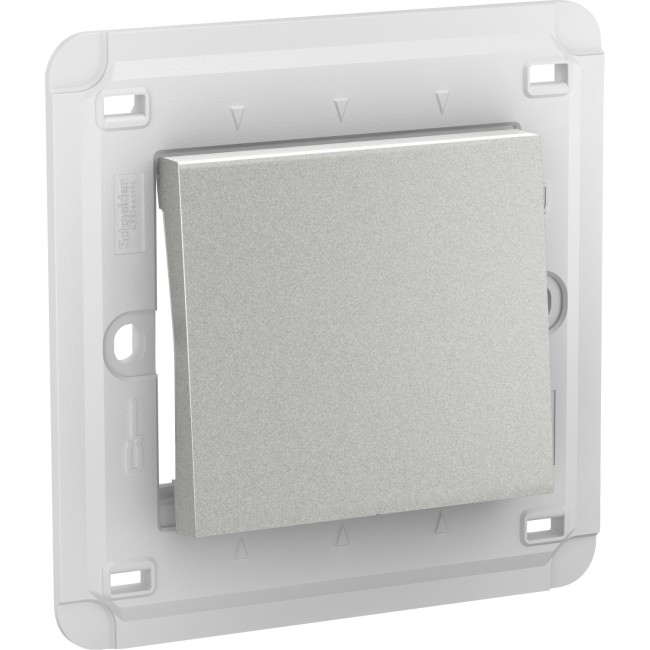

Schneider Unica - switch - 2-way - 16 AX 250 V AC - 1 gang - aluminium MGU5.241.30
Model :MGU5.241.30
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Unica - switch - 2-way - 16 AX 250 V AC - 1 gang - aluminium MGU5.241.30
Specifications
| Range of product | Unica |
|---|---|
| Device application | Control |
| Product or component type | Switch |
| Device presentation | Mechanism with fixing frame |
| Colour tint | Aluminium |
| Switch function | 2-way |
|---|---|
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing center | 60.3 mm |
| Rated current | 16 AX at 250 V AC, inductive 16 AX at 250 V AC, fluorescent |
| Load type | Load for energy saving lamps with ballast: 200 W |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Actuator | Rocker |
| Number of gangs | 1 gang |
| Fixing mode | By screw M3.5 |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L1 COM L2 |
| Cable cross section | 2.5 mm² rigid cable 2.5 mm² stranded cable 2.5 mm² flexible cable |
| Tightening torque | 0.4 N.m |
| Material | PC + ASA: rocker Polycarbonate: cover frame PA (polyamide) 6.6: base |
| Embedding depth | 35 mm |
| Width | 81 mm |
| Height | 83 mm |
| Net weight | 0.036 kg |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Standards | IEC 60669-1 BS 7671 |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 33 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 314 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 120 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 98800 g |
