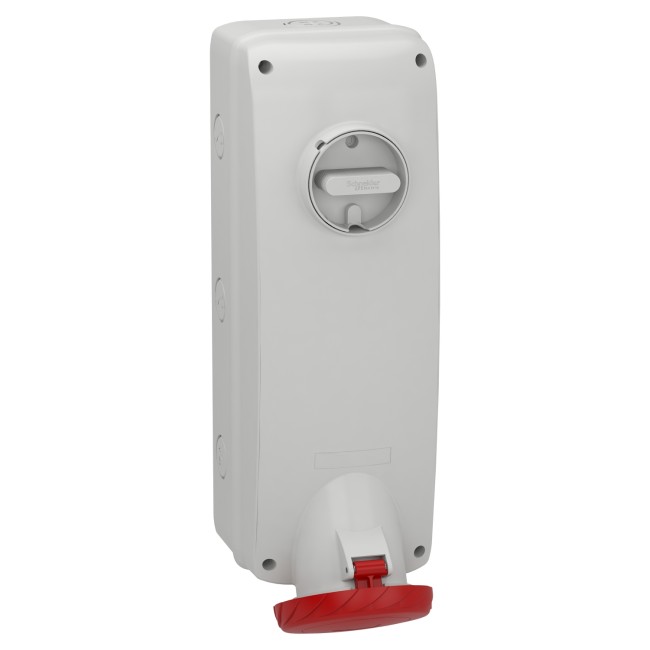

Schneider Unika interlocked socket - 63 A - 3P + N + E - 380...415 V AC - IP65 - wall PKB63P535
This PratiKa industrial interlocked socket with captive screws connection is wall-mounted. It has 3P+N+E pole, rated current is 63A [...]
Model :PKB63P535
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Unika interlocked socket - 63 A - 3P + N + E - 380...415 V AC - IP65 - wall PKB63P535
This PratiKa industrial interlocked socket with captive screws connection is wall-mounted. It has 3P+N+E pole, rated current is 63A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 140mm x (H) 430mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 25mm for 35mm² cables. The color of the socket is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Interlocked socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
|---|---|
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Protection type | Without protection |
| Plug, socket material | Housing: self-extinguishing polymer |
| Contacts material | Pins: stainless steel Screws: stainless steel |
| Connections - terminals | Captive screws |
| Maximum cable cross section | 35 mm² |
| Maximum cable outer diameter | 25 mm |
| Cable entry | Cable gland |
| Thread type | Pg 21 |
| Net weight | 3 kg |
| Base dimension | 140 x 430 mm |
| Height | 430 mm |
| Width | 140 mm |
| Depth | 190 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.000 cm |
| Package 1 Width | 19.200 cm |
| Package 1 Length | 44.400 cm |
| Package 1 Weight | 2.858 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 34.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 37.722 kg |
| Warranty | 18 months |
|---|
