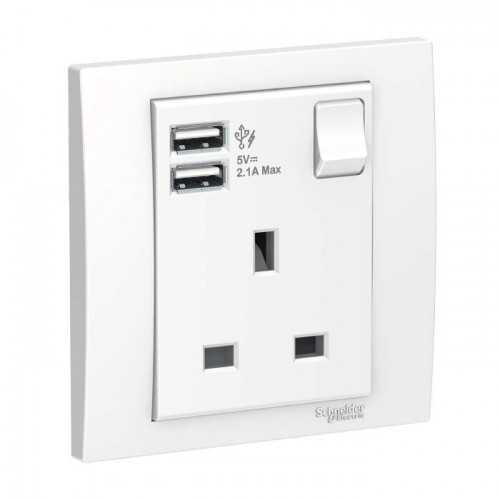

Schneider Electric Vivace Socket Single 13A combined 2 x USB ports 2.1A Socket KB15USB_WE

Vivace Socket Single,13A combined 2 x USB ports 2.1A, AKB15USB_WE
Model :KB15USB_WE
SKU :KB15USB_WE
Assured

No Return 7 days retun policy available
Cash on Delivery Cash on Delivery available
AED 132.00
Rate inclusive of VAT
Sold By : MEPKart
Fulfilled by Thomsun Industries

100%
- +
Bulk Order

  •  Condition: New

Description for Schneider Electric Vivace Socket Single 13A combined 2 x USB ports 2.1A Socket KB15USB_WE


Schneider Electric Vivace Socket Single 13A combined 2 x USB ports 2.1A Socket KB15USB_WE


Enjoy unrivalled performance and reliability with the Schneider Electric Vivace. A clean, geometrically balanced design is ideally suited for new construction and refurbishment projects. Thin: 8mm slim at the thickest point, it offers excellent space-saving potential and reduces sub-floor thickness. All sockets are inserted with shutter doors for a longer lifecycle.

Specifications


Main
range
Vivace
product or component type
Power socket-outlet + USB charger
device presentation
Mechanism
socket additional information
Shuttered
colour tint
White
load type
No inductive load
Complementary
socket number
1
device mounting
Flush 47 mm
switch function
ON/OFF power-socket outlet
number of power socket outlets
1 x 2P + E with shutters, British
rated current
Power circuit: 13 A 220...250 V, AC, 50/60 Hz
surface finish
Glossy
surface treatment
Untreated
number of gangs
1 gang
connector type
USB type A
[Ue] rated operational voltage
220...250 V AC 50/60 Hz
power consumption in W
0.075 W
input power
16 W
integrated connection type
2 USB port 5 V DC, maximum load current: 2.1 A
material
Polycarbonate: grid plate
Polycarbonate: cover
Polycarbonate: surround
Polycarbonate: dolly
Nylon + GF: shutter
Brass: contact plate
Steel: spring
Steel with Cu plating: terminal screw
Copper with silver onlay: bridge
protection type
USB port: over temperature protection with PWM IC circuit
USB port: over voltage protection against surges with PWM IC circuit
USB port: overcurrent between output phases and earth (on power up only) with PWM IC circuit
shape of screw head
Cross
screwdriver shape
Philips
electrical connection
3 screw terminal
clamping connection capacity
1 x 4 mm² for solid cable(s)
2 x 4 mm² for stranded cable(s)
1 x 2.5 mm²
2 x 2.5 mm²
wire stripping length
10…12 mm
mounting support
Mounting box conforming to BS 4662
fixing mode
By screws M3.5 x 25 mm
fixing center
60.3 mm
product compatibility
Power bank
Tablet PC
HW
Smartphone
Apple
HTC
XiaoMi
Samsung
height
86 mm
width
86 mm
depth
41.9 mm
embedding depth
30.6 mm
product weight
0.1 kg
Environment
operating altitude
<= 2000 m
ambient air temperature for operation
0…40 °C
ambient air temperature for storage
-5…60 °C
relative humidity
0…95 %
standards
BS 1363-2
IEC 60950-1
product certifications
IEC
IP degree of protection
IP20
environmental characteristic
Alcohol
Liquid soap
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
